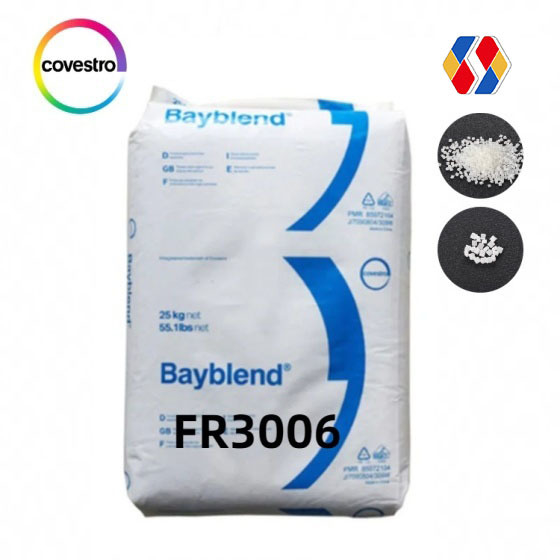

Covestro PC+ABS Bayblend FR3006 HF flame retardant,increased heat resistance
| Brand Name | Covestro |
| Model Number | FR3006 HF |
General purpose grades
FR grades / Non reinforced
(PC+ABS)-Blend; flame retardant; Vicat/B 120 temperature = 108 °C; easy flow version of FR3006;increased heat resistance; UL recognition 94 V-1 at 1.5 mm, V-0 at 1.8 mm and 5VB at 1.8 mm
Rheological properties
|
Property |
Test Condition |
Unit |
Standard |
typical Value |
|
|
C |
Melt volume-flow rate |
240 °C/ 5 kg |
cm³/10 min |
ISO 1133 |
16
|
|
|
Melt viscosity
|
1000 s-1/ 260 °C
|
Pa·s
|
b.o. ISO 11443-A
|
125 |
|
|
Molding shrinkage, parallel
|
150x105x3 mm/ 240 °C / MT 80 °C/ 500 bar
|
% |
b.o. ISO 2577 |
0.5 - 0.7 |
|
|
Molding shrinkage, normal
|
150x105x3 mm/ 240 °C / MT 80 °C/ 500 bar
|
% |
b.o. ISO 2577 |
0.5 - 0.7 |
Mechanical properties (23 °C/50 % r. h.)
| Property | Test Condition | Unit | Standard | typical Value | |
|---|---|---|---|---|---|
| C | Tensile modulus | 1 mm/min | MPa | ISO 527-1,-2 | 2700 |
| C | Yield stress | 50 mm/min | MPa | ISO 527-1,-2 | 60 |
| C | Yield strain | 50 mm/min | % | ISO 527-1,-2 | 4.0 |
| Stress at break | 50 mm/min | MPa | ISO 527-1,-2 | 50 | |
| Stress at break | 50 mm/min | % |
b.o. ISO 527-1,-2
|
>50 | |
| Izod notched impact strength | 23 °C | kJ/m² | ISO 178 | 12 | |
