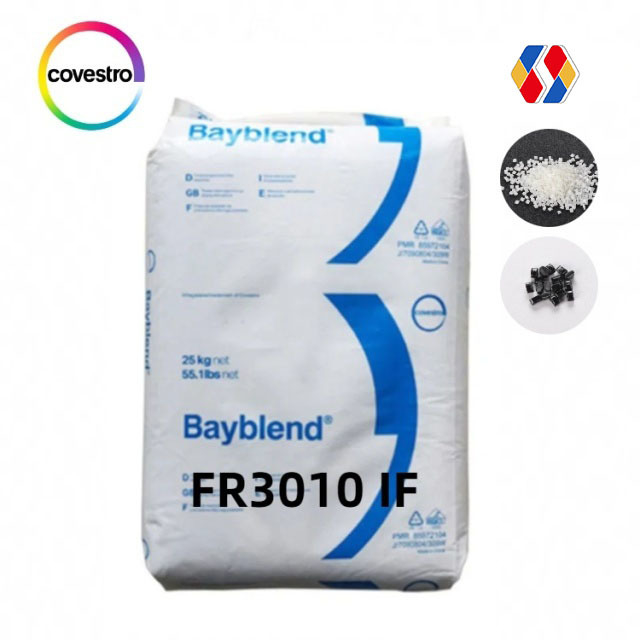

Covestro PC+ABS Bayblend FR3010 IF flame retardant,increased heat resistance
|
Covestro PC+ABS Bayblend FR3010 IF flame retardant,increased heat resistance
| Brand Name | Covestro |
| Model Number | FR3010 IF |
Product Details
Payment & Shipping Terms
Minimum Order Quantity
25KG
Price
*USD to be negotiated
Packaging Details
25Kgs/BAG
Payment Terms
L/C, T/T, Western Union, MoneyGram
Product Description
General purpose grades
FR grades / Non reinforced
(PC+ABS)-Blend; flame retardant; Vicat/B 120 temperature = 108 °C; increased heat resistance; UL recognition 94 5VB (1.5 mm); glow wire temperature (GWFI): 960 °C at 2.0 mm
Rheological properties
| Property | Test Condition | Unit | Standard | typical Value | |
| C | Melt volume-flow rate | 240 °C/ 5 kg | cm³/10 min | ISO 1133 |
17
|
|
Melt viscosity
|
1000 s-1/ 260 °C
|
Pa·s
|
b.o. ISO 11443-A
|
210
|
|
|
Molding shrinkage, parallel
|
150x105x3 mm/ 240 °C / MT 80 °C
|
% | b.o. ISO 2577 | 0.5 - 0.7 | |
|
Molding shrinkage, normal
|
150x105x3 mm/ 240 °C / MT 80 °C
|
% | b.o. ISO 2577 | 0.5 - 0.7 | |
Mechanical properties (23 °C/50 % r. h.)
| Property | Test Condition | Unit | Standard | typical Value | |
| C | Tensile modulus | 1 mm/min | MPa | ISO 527-1,-2 | 2700 |
| C | Yield stress | 50 mm/min | MPa | ISO 527-1,-2 | 60 |
| C | Yield strain | 50 mm/min | % | ISO 527-1,-2 | 4.0 |
| Stress at break | 50 mm/min | MPa | ISO 527-1,-2 | 50 | |
| Stress at break | 50 mm/min | % |
b.o. ISO 527-1,-2
|
>50 | |
|
Izod impact strength
|
23 °C | kJ/m² | ISO 178/U | N | |
|
Izod notched impact strength
|
23 °C | kJ/m² |
ISO 180/A
|
25 | |
