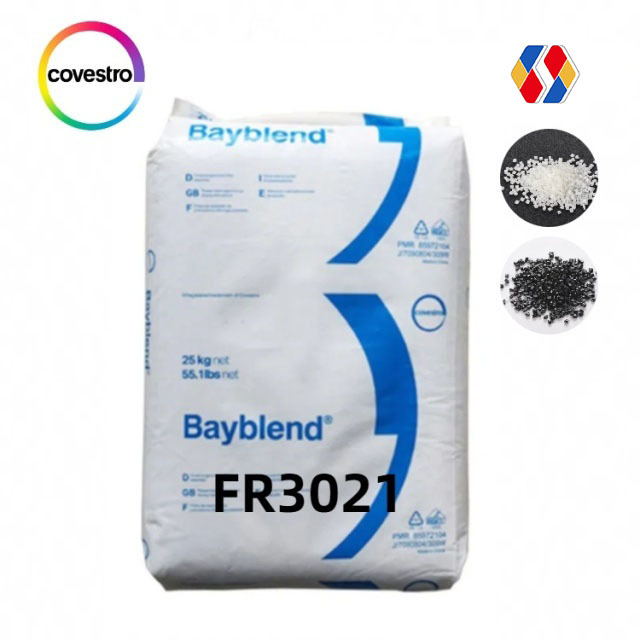

Covestro PC+ABS Bayblend FR3021 15% mineral filled,flame retardant,high stiffness
|
Covestro PC+ABS Bayblend FR3021 15% mineral filled,flame retardant,high stiffness
| Brand Name | Covestro |
| Model Number | FR3021 |
Product Details
Payment & Shipping Terms
Minimum Order Quantity
25KG
Price
*USD to be negotiated
Packaging Details
25Kgs/BAG
Payment Terms
L/C, T/T, Western Union, MoneyGram
Product Description
General purpose grades
FR grades / Mineral filled
(PC+ABS)-Blend; 15 % mineral filled; flame retardant; Vicat/B 120 temperature = 98 °C; high stiffness; tensile modulus = 4800 MPa;; UL recognition 94 V-0 at 1.5 mm; glow wire temperature (GWFI): 960 °C at 2.0 mm
Rheological properties
| Property | Test Condition | Unit | Standard | typical Value | |
|---|---|---|---|---|---|
| C | Melt volume-flow rate | 240 °C/ 5 kg | cm³/10 min | ISO 1133 | 13 |
| Melt viscosity | 1000 s-1/ 260 °C | Pa·s | b.o. ISO 11443-A | 165 | |
| Molding shrinkage, parallel |
150x105x3 mm/ 240 °C / MT 80 °C
|
% | b.o. ISO 2577 | 0.3 - 0.5 | |
| Molding shrinkage, normal |
150x105x3 mm/ 240 °C / MT 80 °C
|
% | b.o. ISO 2577 | 0.3 - 0.5 | |
Mechanical properties (23 °C/50 % r. h.)
| Property | Test Condition | Unit | Standard | typical Value | |
|---|---|---|---|---|---|
| C | Tensile modulus | 1 mm/min | MPa | ISO 527-1,-2 | 4800 |
| C | Yield stress | 50 mm/min | MPa | ISO 527-1,-2 | 65 |
| C | Yield strain | 50 mm/min | % | ISO 527-1,-2 | 3.0 |
| Stress at break | 50 mm/min | MPa | ISO 527-1,-2 | 40 | |
| Stress at break | 50 mm/min | % | b.o. ISO 527-1,-2 | 10 | |
| Flexural modulus | 2 mm/min | MPa | ISO 178 | 4700 | |
| Flexural strength | 2 mm/min | MPa | ISO 178 | 105 | |
|
Izod notched impact strength
|
23 °C | kJ/m² | ISO 180/A | 6.0 | |
