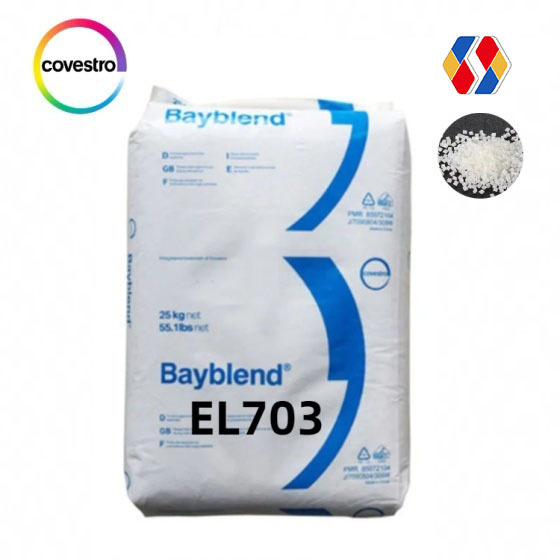

Covestro PC+ABS Makroblend EL703 flame-retardant,UV-stabilized,impact modified
|
Covestro PC+ABS Makroblend EL703 flame-retardant,UV-stabilized,impact modified
| Brand Name | Covestro |
| Model Number | EL703 |
Product Details
Payment & Shipping Terms
Minimum Order Quantity
25KG
Price
*USD to be negotiated
Packaging Details
25Kgs/BAG
Payment Terms
L/C, T/T, Western Union, MoneyGram
Product Description
General purpose grades
(PC+PET) blend; unreinforced; flame-retardant; UV-stabilized; impact modified; high flow; injection molding grade. Good impact strength, dimensional stability and chemical resistance. Uses include outdoor electrical enclosures. UL746C f1 rated.
Rheological properties
| Property | Test Condition | Unit | Standard | typical Value | |
|---|---|---|---|---|---|
| C | Melt volume-flow rate | 260 °C/ 5 kg | cm³/10 min | ISO 1133 | 26 |
|
Molding shrinkage, parallel/normal
|
Value range based on general practical experience (600bar)
|
% | b.o. ISO 2577 | 0.6 -0.8 | |
Mechanical properties (23 °C/50 % r. h.)
| Property | Test Condition | Unit | Standard | typical Value | |
|---|---|---|---|---|---|
| C | Tensile modulus | 1 mm/min | MPa | ISO 527-1,-2 | 2300 |
| C |
Yield stress
|
50 mm/min | MPa | ISO 527-1,-2 | 56 |
| C | Yield stress | 50 mm/min | % | ISO 527-1,-2 | 4.5 |
| C |
Nominal strain at break
|
50 mm/min | % | ISO 527-1,-2 |
100
|
|
Strain at break
|
50 mm/min | MPa | ISO 527-1,-2 | 55 | |
|
Flexural modulus
|
2 mm/min | MPa |
ISO 178
|
2250 | |
|
Flexural stress at 3.5 % strain
|
2 mm/min | MPa |
ISO 178
|
71 | |
|
Flexural strength
|
2 mm/min | MPa |
ISO 178
|
83 | |
| C | Charpy notched impact strength | 23 °C | kJ/m² |
ISO 179/1eA
|
50 |
| C |
Charpy notched impact strength
|
-30 °C | kJ/m² | ISO 179/1eA | 15 |
|
Izod notched impact strength
|
23 °C | kJ/m² | ISO 108/A | 50 | |
| Izod notched impact strength | -30 °C | kJ/m² | ISO 108/A | 15 | |
