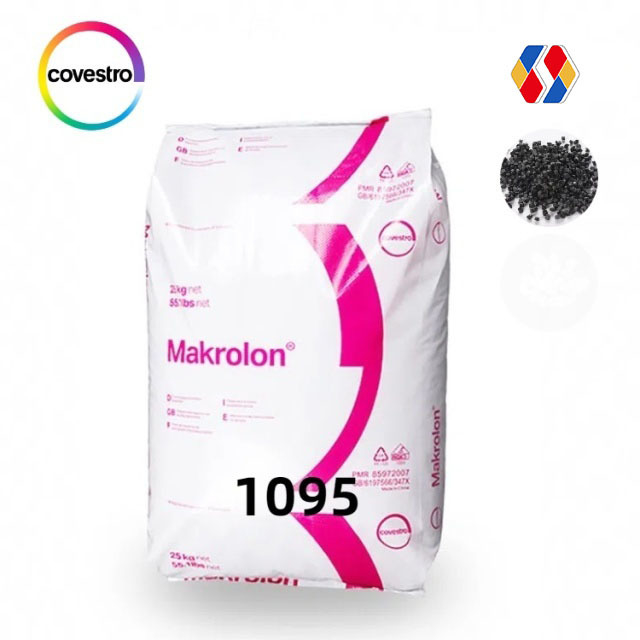

Covestro PC Makrolon 1095 15% glass fiber reinforced,high viscosity
| Brand Name | Covestro |
| Model Number | 1095 |
Product Details
Payment & Shipping Terms
Minimum Order Quantity
25KG
Price
*USD to be negotiated
Packaging Details
25Kgs/BAG
Payment Terms
L/C, T/T, Western Union, MoneyGram
Product Description
General purpose grades
MVR (300 °C/1.2 kg) 6.0 cm³/10 min; 15 % glass fiber reinforced; UL 94V-0/3.0 mm; high viscosity;easy release; injection molding - melt temperature 310 - 330 °C; extrusion; available in opaque colors only; housings for power tools
Rheological properties
| Property | Test Condition | Unit | Standard | typical Value | |
| C | Melt volume-flow rate |
300 °C/ 1.2 kg
|
cm³/10 min | ISO 1133 |
6.0
|
|
Melt mass-flow rate
|
300 °C/ 1.2 kg
|
g/10 min
|
ISO 1133 | 7.0 | |
| C |
Molding shrinkage, parallel
|
60x60x2 mm/ 500 bar
|
% | ISO 294-4 | 0.45 |
| C | Molding shrinkage, normal | 60x60x2 mm/ 500 bar | % | ISO 294-4 | 0.45 |
Mechanical properties (23 °C/50 % r. h.)
| Property | Test Condition | Unit | Standard | typical Value | |
| C | Tensile modulus | 1 mm/min | MPa | ISO 527-1,-2 | 4600 |
|
Yield stress
|
50 mm/min | MPa | ISO 527-1,-2 | 64 | |
| Yield stress | 50 mm/min | % | ISO 527-1,-2 | 4.6 | |
| C | Stress at break | 50 mm/min | kJ/m² | ISO 527-1,-2 | 45 |
| C | Stress at break | 50 mm/min | kJ/m² |
b.o. ISO 527-1,-2
|
12 |
|
Flexural modulus
|
2 mm/min | MPa |
ISO 178
|
4400 | |
|
Flexural strength
|
2 mm/min | MPa |
ISO 178
|
105 | |
|
Flexural strain at flexural strength
|
2 mm/min | % |
ISO 178
|
5.8 | |
|
Flexural stress at 3.5 % strain
|
2 mm/min | MPa |
ISO 178
|
95 | |
| C |
Charpy impact strength
|
23 °C | kJ/m² |
ISO 179/1eU
|
120C |
|
Charpy impact strength
|
-60 °C/ | kJ/m² |
ISO 179/1eU
|
90C | |
|
Charpy notched impact strength
|
23 °C/3mm | kJ/m² |
ISO 21305/based on ISO 180/A
|
10C | |
| Izod notched impact strength | 23 °C/3mm | kJ/m² | ISO 21305/based on ISO 180/A | 10C | |
| C |
Puncture impact properties - maximum force
|
23 °C | N |
ISO 6603-2
|
3600 |
| C |
Puncture impact properties - maximum force
|
-30 °C | N |
ISO 6603-2
|
3000 |
| C |
Puncture energy
|
23 °C | J |
ISO 6603-2
|
25 |
| C |
Puncture energy
|
-30 °C | J |
ISO 6603-2
|
13 |
|
Ball indentation hardness
|
N/mm² |
ISO 2039-1
|
129 | ||
