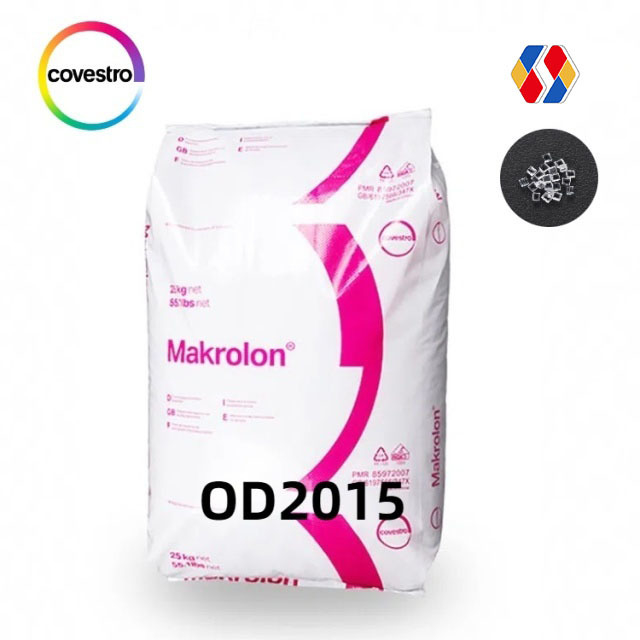

Covestro PC Makrolon OD2015 high purity
| Brand Name | Covestro |
| Model Number | OD2015 |
Product Details
Payment & Shipping Terms
Minimum Order Quantity
25KG
Price
*USD to be negotiated
Packaging Details
25Kgs/BAG
Payment Terms
L/C, T/T, Western Union, MoneyGram
Product Description
Main physical property
Grades / Optical storage media
MVR (250 °C/2.16 kg) 17 cm³/10 min; optical storage media; suitable for all formats; high purity; injection molding - melt temperature 300 - 350 °C; available in color code 000000 only
Rheological properties
| Property | Test Condition | Unit | Standard | typical Value | |
| C | Melt volume-flow rate |
300 °C/ 1.2 kg
|
cm³/10 min | ISO 1133 |
17
|
| C |
Molding shrinkage, parallel
|
60x60x2 mm/ 500 bar
|
% | ISO 294-4 | 0.6 |
| C | Molding shrinkage, normal | 60x60x2 mm/ 500 bar | % | ISO 294-4 | 0.6 |
Mechanical properties (23 °C/50 % r. h.)
| Property | Test Condition | Unit | Standard | typical Value | |
| C | Tensile modulus | 1 mm/min | MPa | ISO 527-1,-2 | 2350 |
| C |
Yield stress
|
50 mm/min | MPa | ISO 527-1,-2 | 63 |
| C |
Yield strain
|
50 mm/min | % | ISO 527-1,-2 | 5.9 |
| C |
Nominal strain at break
|
50 mm/min | % | ISO 527-1,-2 | >50 |
|
Stress at break
|
50 mm/min | MPa | ISO 527-1,-2 | 55 | |
|
Stress at break
|
50 mm/min | % | ISO 527-1,-2 | 100 | |
|
Flexural modulus
|
2 mm/min | MPa |
ISO 178
|
2350 | |
|
Flexural strength
|
2 mm/min | MPa |
ISO 178
|
97 | |
|
Flexural strain at flexural strength
|
2 mm/min | % |
ISO 178
|
7.1 | |
|
Flexural stress at 3.5 % strain
|
2 mm/min | MPa | ISO 178 | 72 | |
| C |
Charpy impact strength
|
23 °C | kJ/m² |
ISO 179/1eU
|
N |
| Charpy impact strength | -60 °C | kJ/m² | ISO 179/1eU | N | |
|
Charpy notched impact strength
|
23 °C/3mm | kJ/m² | ISO 21305/based on ISO 179/A | 50P(C) | |
| Charpy notched impact strength | -30 °C/3mm | kJ/m² | ISO 21305/based on ISO 179/A | 12C | |
|
Izod notched impact strength
|
23 °C/3mm | kJ/m² | ISO 21305/based on ISO 180/A | 50P | |
|
Izod notched impact strength
|
-30 °C/3mm | kJ/m² | ISO 21305/based on ISO 180/A | 12C | |
| C |
Puncture impact properties - maximum force
|
23 °C | N |
ISO 6603-2
|
4700 |
| Puncture impact properties - maximum force | -30 °C | N | ISO 6603-2 | 5700 | |
| C |
Puncture energy
|
23 °C | J |
ISO 6603-2
|
50 |
| Puncture energy | -30 °C | J | ISO 6603-2 | 55 | |
|
Ball indentation hardness
|
N/mm² |
ISO 2039-1
|
115 | ||
