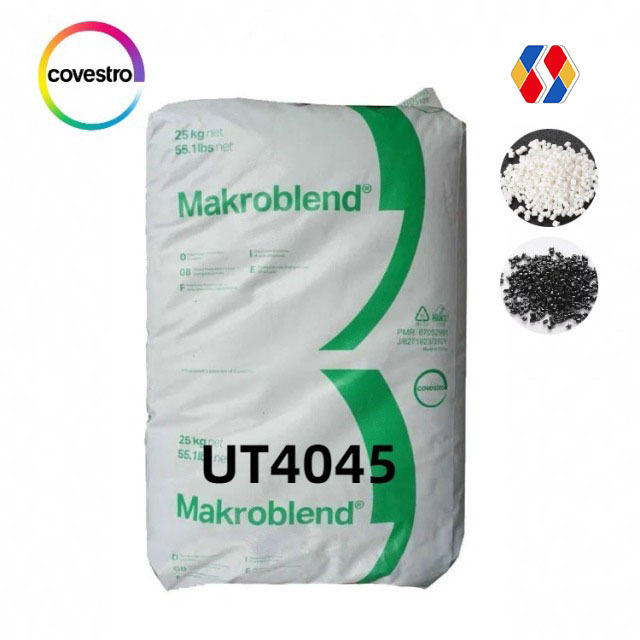

Makroblend UT4045 G good flowability and exceptional dimensional stability
|
Makroblend UT4045 G good flowability and exceptional dimensional stability
| Brand Name | Covestro |
| Model Number | UT4045 |
Product Details
Payment & Shipping Terms
Minimum Order Quantity
25KG
Price
*USD to be negotiated
Packaging Details
25Kgs/BAG
Payment Terms
L/C, T/T, Western Union, MoneyGram
Product Description
General purpose grades
(PC+PBT)-blend, 20% Glass fiber reinforced, easy release, injection molding. Makroblend UT4045G offers a high stiffness, excellent chemical resistance, good flowability and exceptional dimensional stability.
Rheological properties
| Property | Test Condition | Unit | Standard | typical Value | |
|---|---|---|---|---|---|
| C | Melt volume-flow rate | 260 °C/ 5 kg | cm³/10 min | ISO 1133 |
30
|
|
Molding shrinkage, parallel
|
150x105x3 mm/ 260 °C / MT 80 °C/ 600 bar
|
% | b.o. ISO 2577 | 0.2- 0.4 | |
|
Molding shrinkage, normal
|
150x105x3 mm/ 260 °C / MT 80 °C/ 600 bar
|
% | b.o. ISO 2577 | 0.5 - 0.7 | |
|
Molding shrinkage, parallel/normal
|
Value range based on general
practical experience (600bar)
|
% | b.o. ISO 2577 |
0.2 - 0.6
|
|
|
Post- shrinkage, parallel/normal
|
Value range based on general
practical experience (1h; 90°C)
|
% | b.o. ISO 2577 |
<0.1
|
|
Mechanical properties (23 °C/50 % r. h.)
| Property | Test Condition | Unit | Standard | typical Value | |
|---|---|---|---|---|---|
| C | Tensile modulus | 1 mm/min | MPa | ISO 527-1,-2 | 6500 |
| Yield stress | 50 mm/min | MPa | ISO 527-1,-2 | 100 | |
| Yield strain | 50 mm/min | % | ISO 527-1,-2 | 3 | |
| Nominal strain at break | 50 mm/min | % | ISO 527-1,-2 | 3 | |
| C | Stress at break | 50 mm/min | MPa | ISO 527-1,-2 | 100 |
| C |
Strain at break
|
50 mm/min | % |
ISO 527-1,-2
|
3 |
|
Flexural modulus
|
2 mm/min | MPa | ISO 178 | 6100 | |
|
Flexural strain at flexural strength
|
2 mm/min | % | ISO 178 | 3 | |
| Flexural strength | 2 mm/min | MPa | ISO 178 | 160 | |
| C | Charpy impact strength | 23°C | kJ/m² | ISO 179/1eU | 45 |
| C | Charpy impact strength | -30 °C | kJ/m² | ISO 179/1eU | 40 |
|
Izod impact strength
|
23°C | kJ/m² | ISO 180/U | 40 | |
|
Izod impact strength
|
-30 °C | kJ/m² |
ISO 180/U
|
35 | |
|
Izod notched impact strength
|
23°C | kJ/m² |
ISO 180/A
|
6 | |
|
Izod notched impact strength
|
-30 °C | kJ/m² |
ISO 180/A
|
6 | |
|
Ball indentation hardness
|
N/mm²
|
ISO 2039-1
|
90 | ||
